Round Electric Warming Tray
Part No. SN8F5754
Use airflow to dry hair in one step and straighten it at the same time, simplifying the styling process and saving time. Suitable for all hair types.
Main advantages
- 1. The whole table warm dishes, more space
- 2. Separate control of hot and cold dish areas
- 3. 2000W high power, Rapid heating
- 4. Far infrared heating, no high-frequency radiation, Rest Assured Use
- 5. Resistance heating, Running without noise

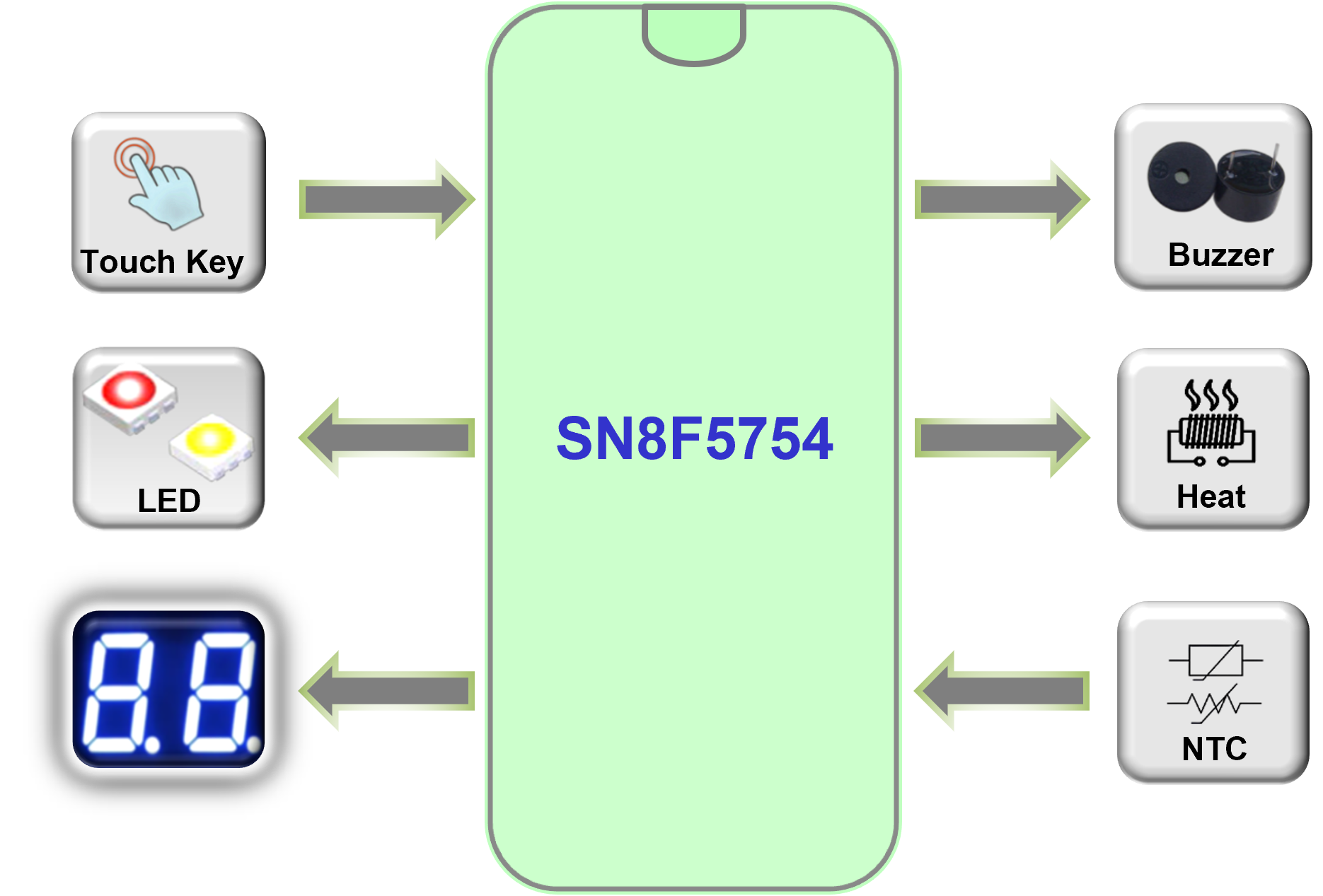

Specifications
Enhanced 8051 microcontroller, ROM 16K bytes, RAM 1280 bytes
12-bit SAR ADC
- - 16 external channels
- - Monitors the NTC circuit, open-circuit, and short-circuit for safety
2-set 16-bit PWM
- Controls buzzer output
Supports 2-set UART and I2C interface
High noise and electrostatic discharge (ESD) immunity
- Enables stable operation despite high-noise loads, including solenoid valve and water pumps, controlling water flow and pressure, and heating wires, controlled by silicon controlled rectifiers (SCRs)
Built-in 2 kHz/4 kHz buzzer output
Related Application
