BLDC Floor Fan
Part No. SN32F805
Use airflow to dry hair in one step and straighten it at the same time, simplifying the styling process and saving time. Suitable for all hair types.
Main advantages
- 1. Remote control, convenient to operation
- 2. Low noise, Strong wind, Strong power
- 3. Multi-stage wind speed adjustable, Select on demand
- 4. OSC wide-angle head swing, Always in the breez
- 5. Timing switcher

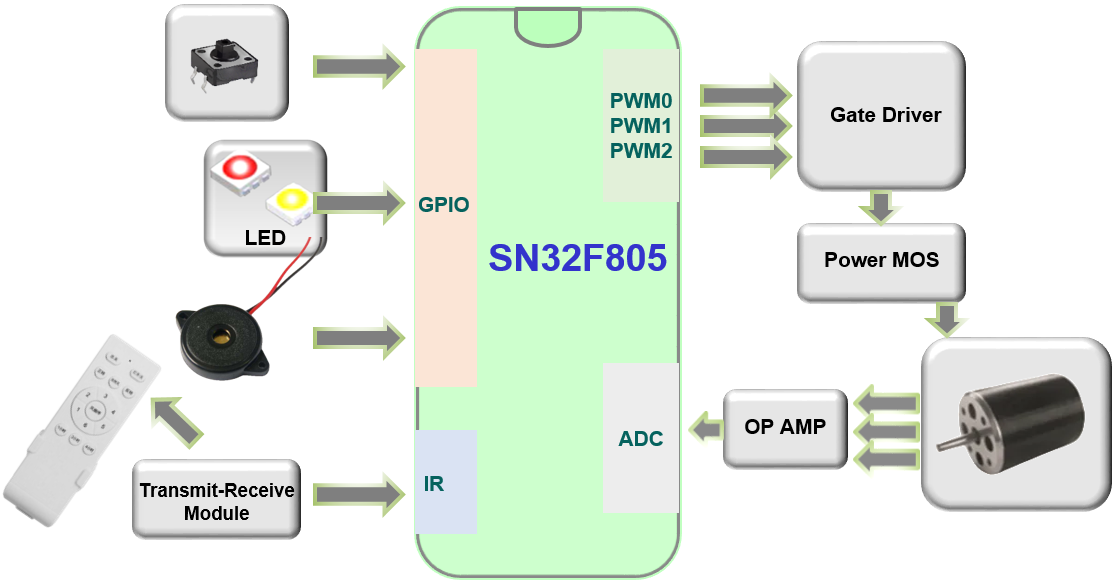

Specifications
Remote control, convenient to operation
12-bit SAR ADC
- -16-frame ADB FIFO
- -Support single and continuous mode
- -Auto-conversion for single and multiple channels
16-bit PWM
- -Four sets of inverse PWM with programmable dead-band
- -Controls high-speed brushless DC (BLDC) electric motor
Supports SPI, UART, and I2C interface
Supports SPI, two UARTs, and two I2Cs interface
