Plug Power Meter
Part No. SN32F705B
Use airflow to dry hair in one step and straighten it at the same time, simplifying the styling process and saving time. Suitable for all hair types.
Main advantages
- 1. Remote control, home appliances are in control, let home with you at any moment
- 2. Efficient use of electricity, Intelligent life
- 3. Electricity statistics, know the electricity consumption in real time
- 4. Power cut memory function, No reconfiguration is required after power off
- 5. Multiple security protections

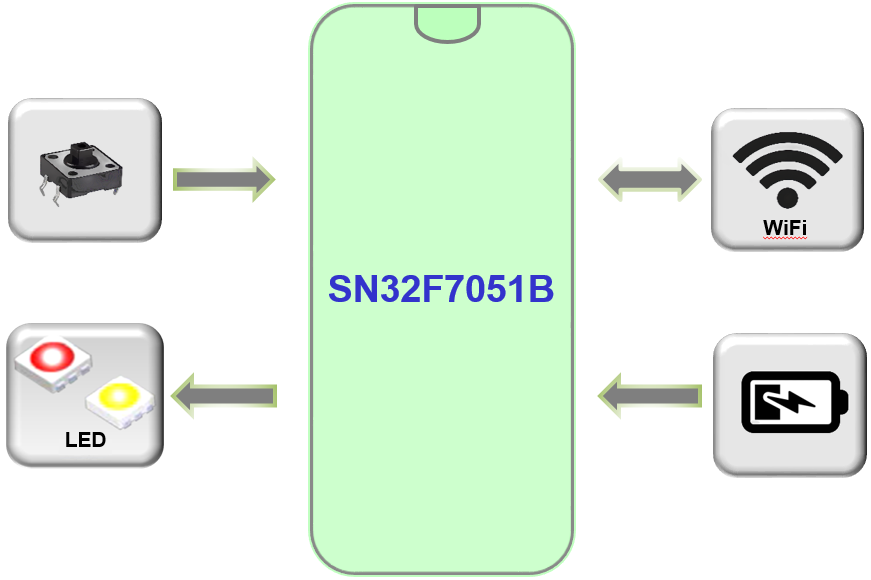

Specifications
Cortex-M0, ROM 32K bytes, RAM 8K bytes
12-bit SAR ADC
Two rail-to-rail comparators
Supports SPI, two UARTs, and one I2C interface for external energy metering IC and WiFi module connection
High noise and electrostatic discharge (ESD) immunity
Related Application
