Convection Oven
Part No. SN8F58692
Use airflow to dry hair in one step and straighten it at the same time, simplifying the styling process and saving time. Suitable for all hair types.
Main advantages
- 1. High power, Rapid heating, Heat evenly, no waiting
- 2. Precise temperature control, Enjoy delicious
- 3. Colorful and big touch screen, Clear at a glance
- 4. One button operation, Simple and Convenient
- 5. Free Setting time, easy cooking without supervision
- 6. Rapid heat dissipation
- 7. Self-protection, Safety and Reliability

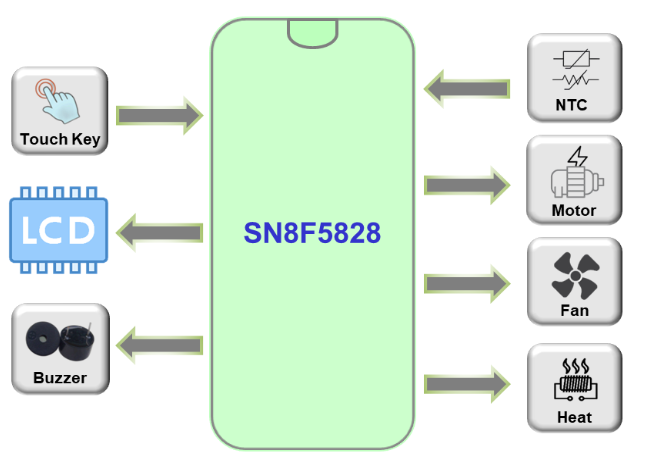

Specifications
Enhanced 8051 microcontroller, ROM 64K bytes, RAM 4352 bytes
12-bit SAR ADC
- - 16 external channels
- - Monitors the NTC circuit, open-circuit, and short-circuit for safety
4-set 16-bit PWM
- Controls buzzer output
Supports 4-set UART and I2C interface
High noise and electrostatic discharge (ESD) immunity
- Enables stable operation despite high-noise loads, including solenoid valve and water pumps, controlling water flow and pressure, and heating wires, controlled by silicon controlled rectifiers (SCRs)
24-channel capacitive touch
4*36/5*35/6*34/8*32 R/C-type LCD Driver
High noise and electrostatic discharge (ESD) immunity:
- Enables stable operation despite high-noise loads, such as heating wires controlled by relays
